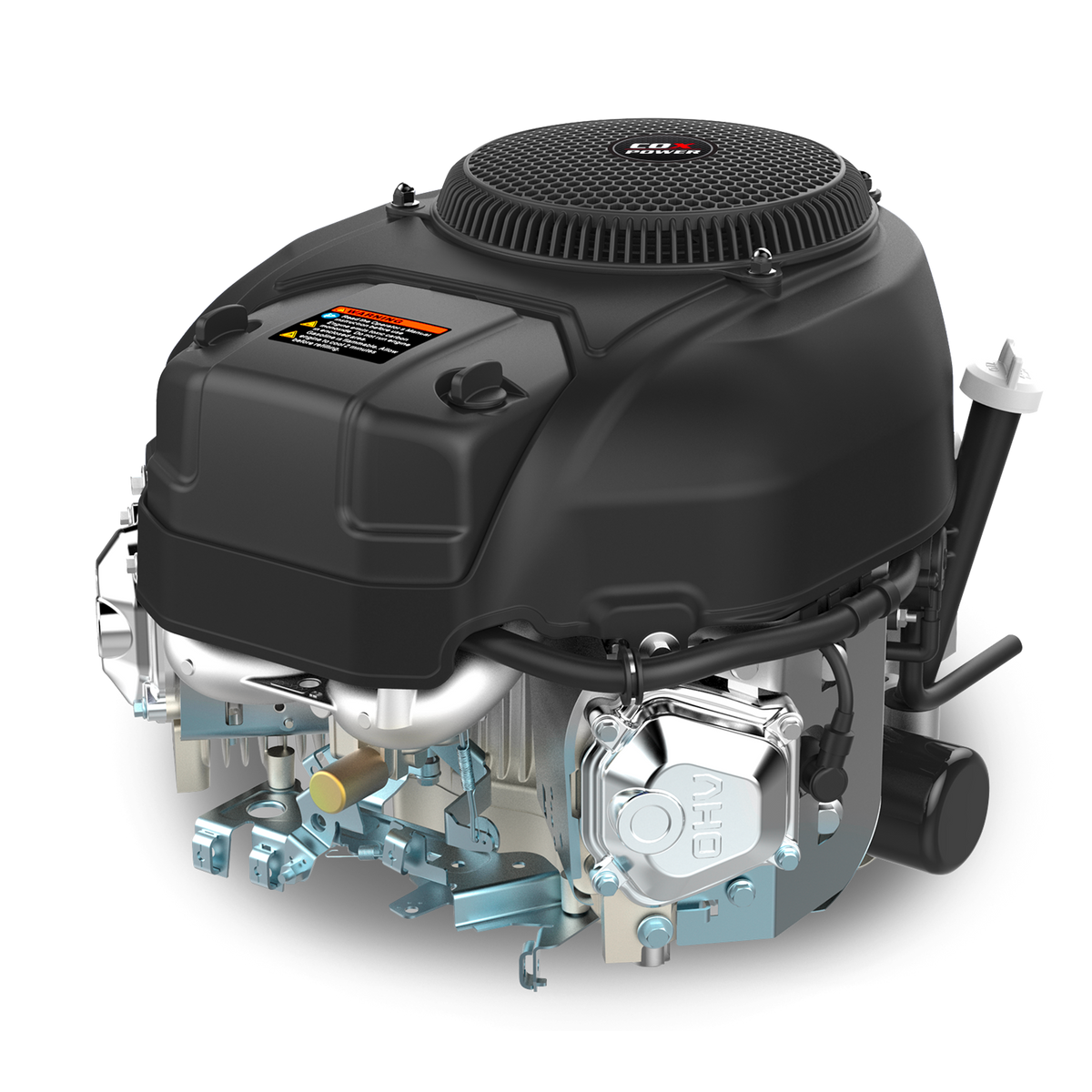

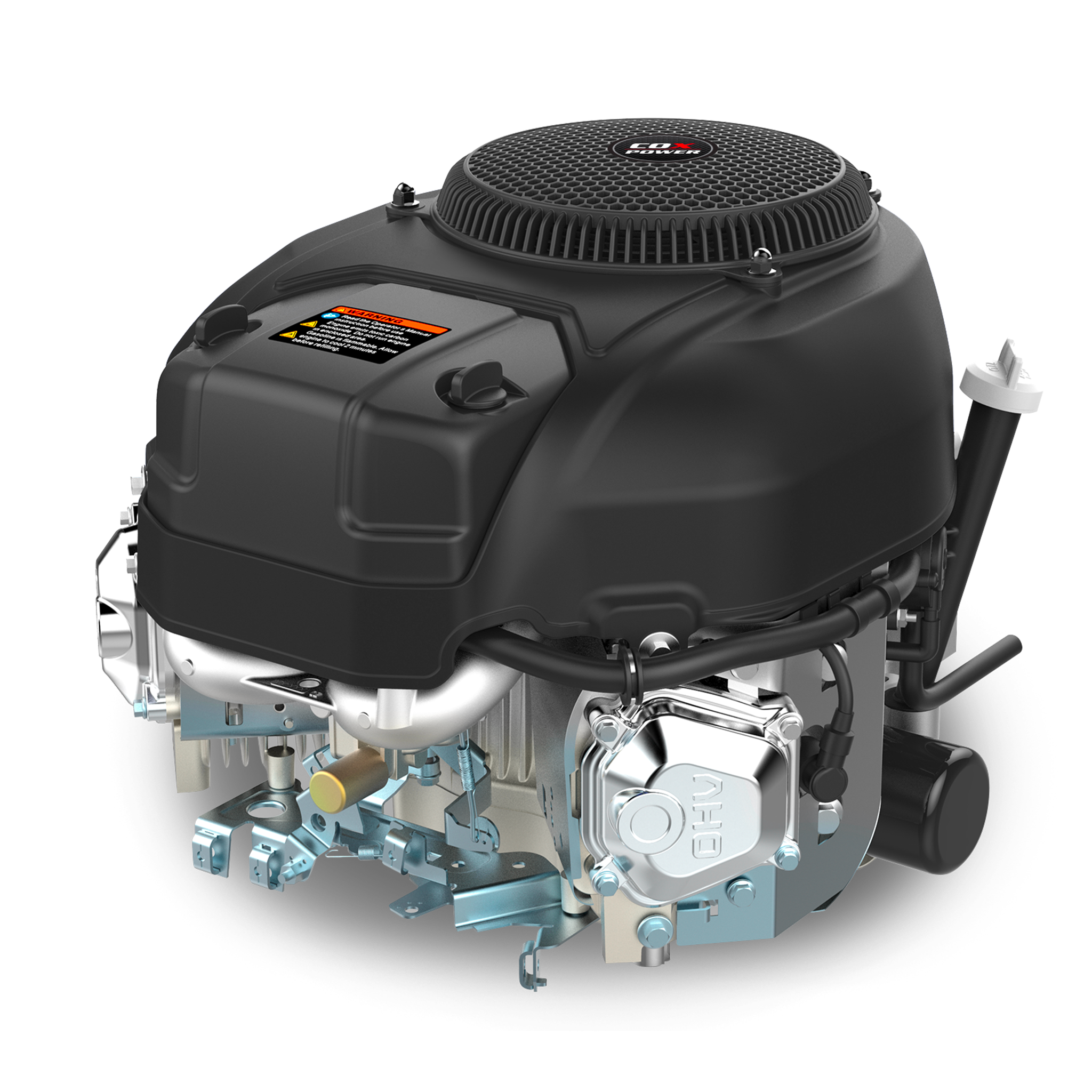

The CPV550-1 is an optimal engine selection for medium to large ride-on mowers and frequently used larger machinery, featuring both recoil and electric start options. This engine boasts a 547cc displacement and delivers 11.5 kW/18.5hp power, ensuring efficient and reliable performance.
With a 1” crankshaft size and a 90x86 mm cylinder bore it is meticulously designed for durability. Operating at a maximum speed of 3800 r/min and producing a torque of 33 N.m, it guarantees powerful performance.
The CPV550-1 is equipped with a 1.8L oil capacity, and is compatible with SAE 10W-30 oil. Measuring 505x440x435 mm and weighing 33 kg, this engine complies with CE, EC(V), EPA, and CARB standards.
It serves as a precise replacement for various models, including the Vanguard 18HP V-Twin Vertical Shaft engine, Briggs & Stratton 17.5HP Lawnmower Engine, Briggs & Stratton 22HP V-Twin Ride-on Mower engine, and the Honda GXV630R 20HP V-Twin Vertical Shaft engine.
